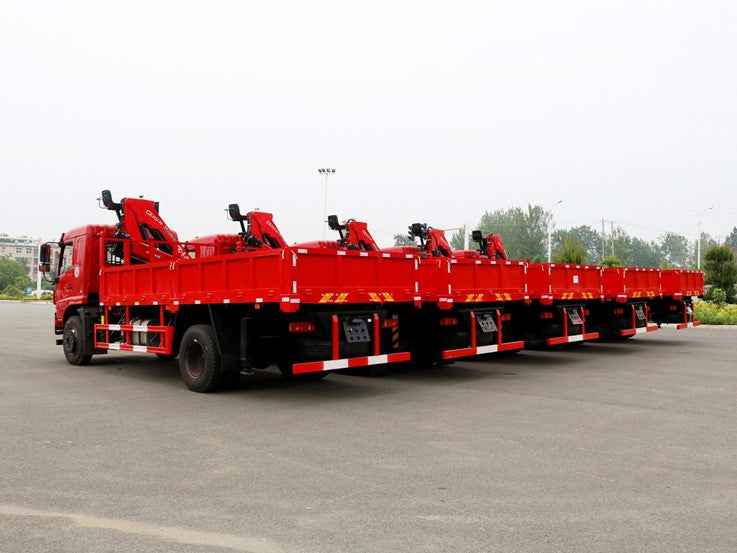

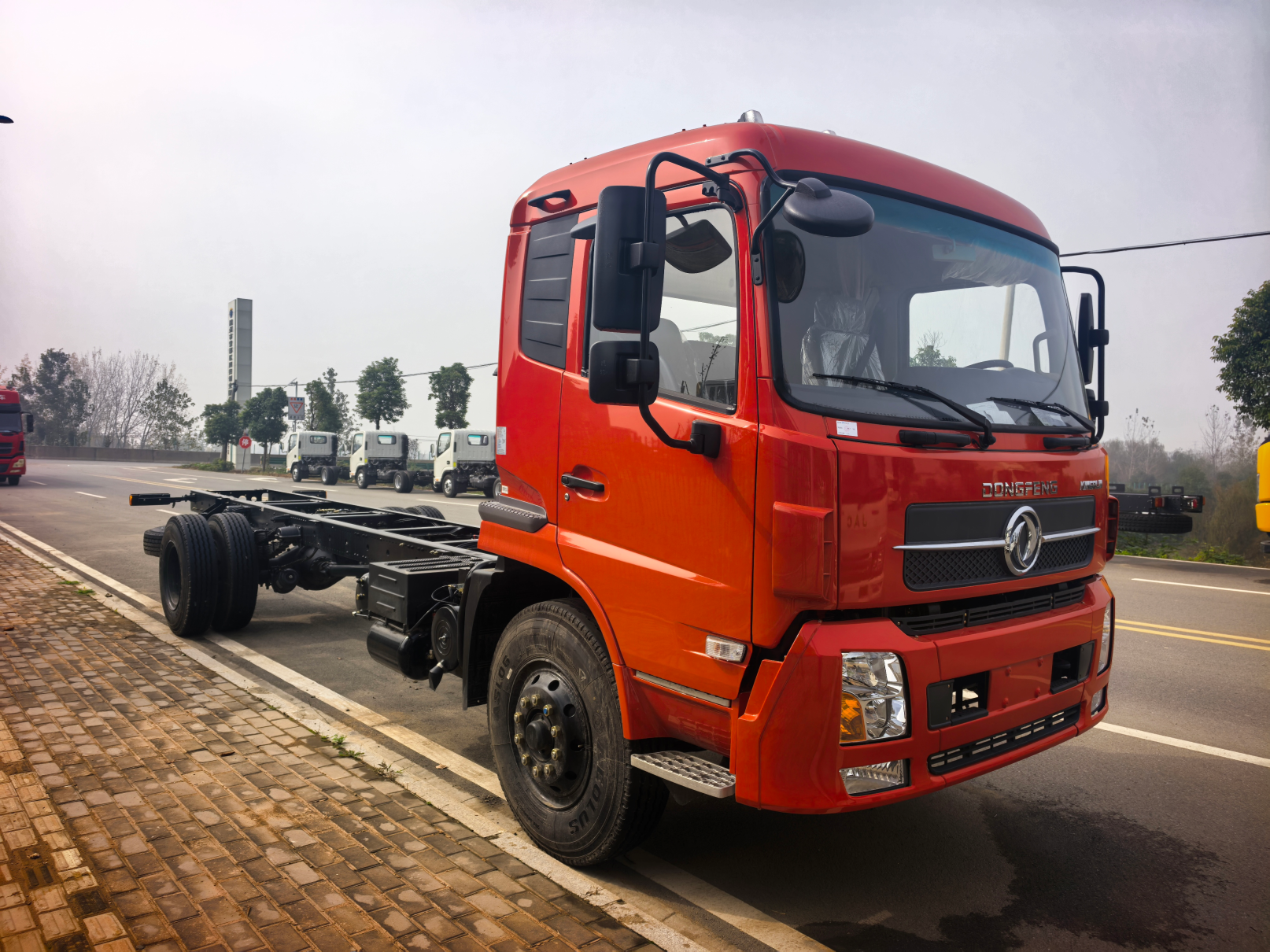

Dongfeng 4T Knuckle Boom Crane

1.Basic parameters of vehicle

Truck Brand

Dongfeng

Drive Type

Left Hand Drive 4*2

Vehicle Size(mm)

7000*2300*3600

G.V.W(kg)

12000

Engine Model

YC4E140-33

Engine power

140HP/103KW

Emission Standard

Euro 2

Wheelbase

3800mm

Cab Capacity

2

Transmission

8JS85TC

Front/Rear Axle

3.5T/6T

Tyre Size

8.25R16

 Fuel tank

145L

Container Size

4200 × 2300 × 600mm

Container material

Q235 carbon steel

Container thickness

Side panels 3 mm, bottom panel 5 mm.

Crane Brand

CX/SQZ80-3

Maximum lifting weight

4T

Working angle

360-degree rotation

Maximum lifting height

9M

Working radius

6.25M

Quantity of telescopic arm

3-section

Rear outriggers

Equipped with

2.Crane parameters
