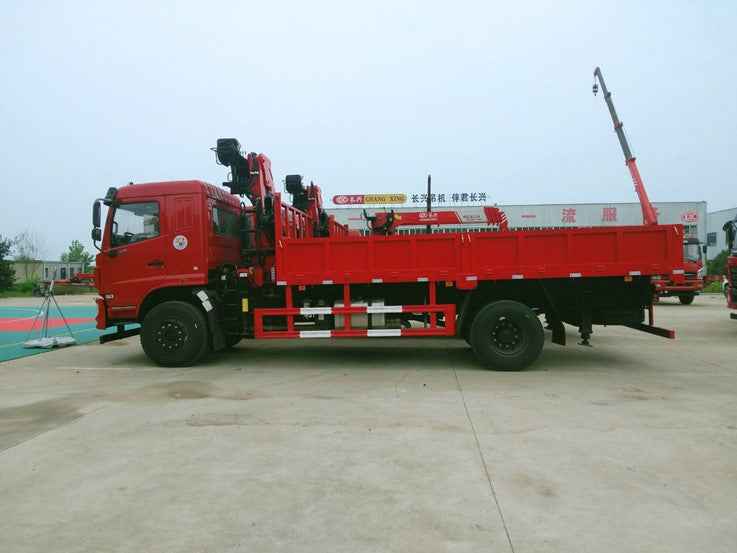

HOWO 5T Knuckle Boom Crane

2.Basic parameters of vehicle

Truck Brand

HOWO

Chassis Model

ZZ1187K501GF1

Drive Type

Left Hand Drive 4*2

Vehicle Size(mm)

8700*2500*3650

G.V.W(kg)

18000

Engine Model

WP4.6NQ240E62

Engine capacity

4.58L

Engine power

240HP/177KW

Emission Standard

Euro 6

Wheelbase

4500mm

Cab Capacity

3

Transmission

HW95508STC2 gearbox + HW45ZC flange-type power take-off

Front/Rear Axle

7T/13T

Tyre Size

10.00R20

 fuel tank

200L

Container Size

5600 × 2400 × 600mm

Container material

Q235 carbon steel

Container thickness

Side panels 3 mm, bottom panel 5 mm.

Crane Brand

CX/SQZ100-3

Maximum lifting weight

5T

Working angle

360-degree rotation

Maximum lifting height

10M

Working radius

7.67M

Quantity of telescopic arm

3-section

Rear outriggers

Equipped with

3.Crane parameters
