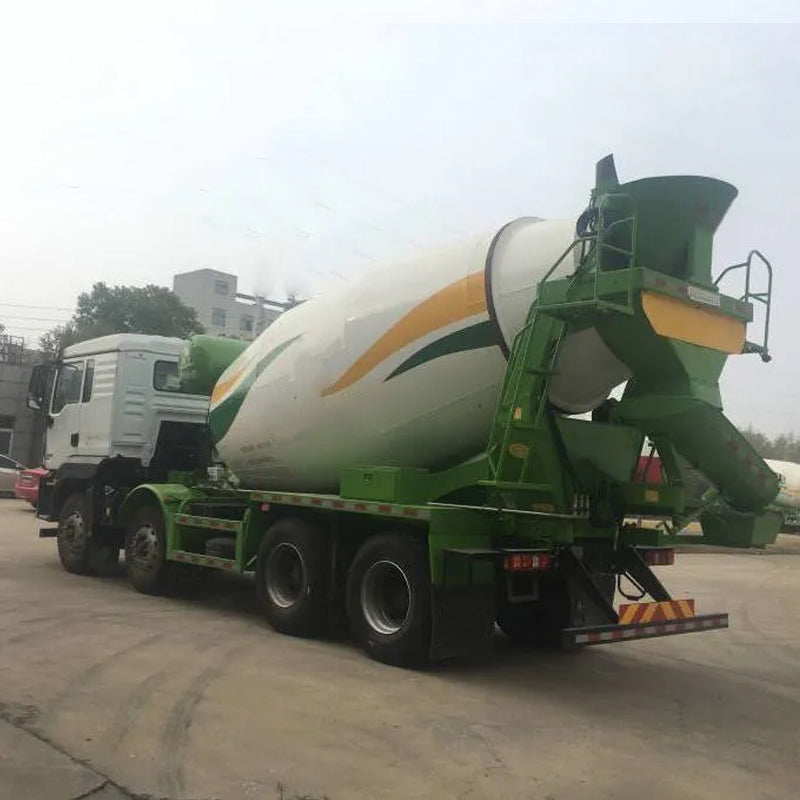

SHACMAN 8x4 12CBM Concrete Mixer Truck

SHACMAN 8x4 12CBM Concrete Mixer Truck

Drive Type:
Color and Logo
Emission Standard:
WhatsApp Chat View full details

 Concrete mixer truck is the fist product of CLW GROUP with a long history of manufacturing. The truck has compact structure design, advanced technology, convenient operation, excellent performance, beautiful and generous appearance, elaborate surface paint spraying, and the ability to transport a variety of collapse degrees and grades. This series of concrete mixer truck is a special vehicle to load, unload and transport concrete by adding a force extractor, reducer, hydraulic pump and hydraulic motor system and operating system to the second class chassis. Optional imported hydraulic parts can be installed to meet the needs of transporting different quality of concrete. The tank material can be selected from carbon steel, opaque steel, manganese steel, etc. to meet the needs of transporting different concrete.

Concrete mixer truck

Model: ZZ1257N3847 Volume: 12cbm
Total Weight: 31000kg Curbe Weight: 13650kg
Size of Outter: 10180X2550X3990(mm)

Drive style:

8x4
WheelBase: 1800+3000+1400mm Tire Size: 11.00R20
Transmission: 10-Speed Tire Number: 12
Maximum speed (km/h): 90
Brake System: Air Brake
Fuel Type: Diesel Emission Standard: Euro 2
Engine Model: WP8.350E61 Power:

350HP

Displacement: 7800ml

 Standard Equipments:
Concrete mixer truck is mainly composed of automobile chassis, tank assembly, oil pump, oil motor, reducer radiator and pipe network system and transmission device, etc.

Concrete mixer truck
